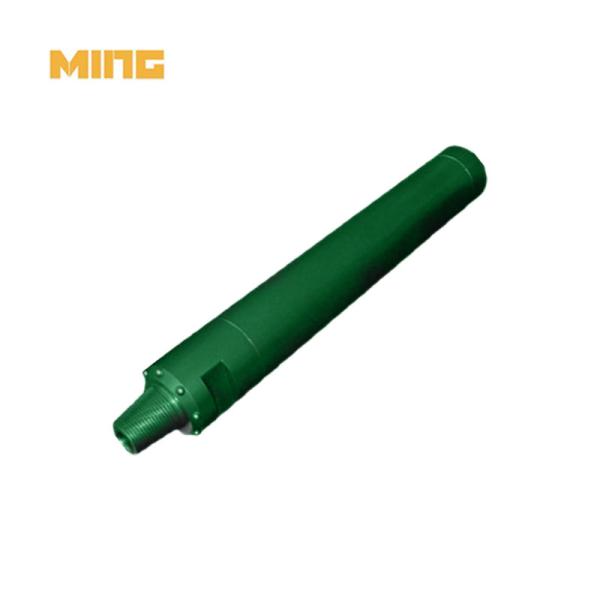

Product name: 5inch high air pressure DTH hammer with MISSION50 shank for water well drilling

Matched hammer: Hammer MISSION50

Connection thread: API2-3/8"REG/API2-7/8"IF/API3-1/2"REG

Working pressure(bar): 13~25

Outer diameter(mm): 126

Weight(KGS): 67

Bit diameter recommend(mm): 140~152

High air pressure DTH hammer with MISSION50 shank details:

Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.

For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.

This strong supply chain is backed up by Kingdrilling’s dedication to its AIM principle: reliable, implement and responsibility. Using this, we are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.

Kingdrilling rock drill tools application:

1. mininig,quarry blasting hole borehole drilling

2. water well,depep hole well,oil and gas open hole drilling

3. foundation and piling drilling

4. mininig,quarry blasting hole borehole drilling

High air pressure DTH hammer with MISSION50 shank technical parameters:

How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)

FAQ:

1.What is DTH Bit?

Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.

2. What is DTH hammer?

Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.

3. How does DTH drilling work?

A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).

MORE INFORMATION:

Wuhan Kingdrilling Diamond CO., LTD, located in Wuhan East Lake High-tech Development Zone, is one of the most professional private enterprise specialized in researching and producing ODEX casing drilling system, symmetric casing drilling system, DTH hammer, DTH drill bits, Thread bits, Shank adapter, Drilling rods, Coal mining tools, Coupling sleeve, Anchoring and so on.

Relying on the university resources and talent advantages in Optical Valley region, combining with multiple laboratories in universities, we focused on developing the newest products system.

We produce DTH drilling tools with advanced technology from Britain, a completed manufacturing system has been formed in plant. The company is equipped with advanced production facilities including electron-hydraulic forging hammer, multipurpose furnace heat treatment production line, high performance CNC machines, all processes from raw materials prepared, forging, heat treatment, metal processing are completed in the factory. Strict quality control standards make sure stable quality.

Whatever in construction, engineering, piling, waterwell drilling, tunnelling, mining, quarrying or horizontal drilling industry. KINGDRILLING will always do the best to meet your demands. "Kingdrilling, Keep On Striving",  we’ll always be in this line to serve our customers the most reliable products and the best support.
