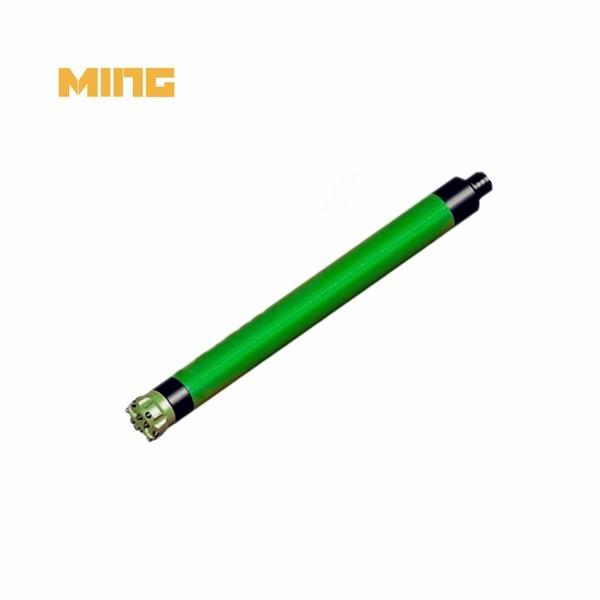

Product name: 4inch high air pressure DTH hammer with COP44 shank for construction

Product category: Drilling rig accessories

Matched hammer: Hammer COP44

Connection thread: API 2 3/8 REG

Working pressure(bar): 10~25

Outer diameter(mm): 99

Weight(KGS): 40.7

Bit diameter recommend(mm): 115~130

High air pressure DTH hammer with COP44 shank details:

Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.

High air pressure DTH hammer with COP44 shank technical parameters:

How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)

FAQ:

1. What is hole hammer?

Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.

2. Is top hammer drilling vs down-the-hole drilling?

The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.

3. What is a top hammer used for?

Top hammer drills are primarily used in mining, construction and quarrying of rock material. Top hammer drilling, combined with the “drill and blast” method, makes the whole excavation process extremely efficient.

MORE INFORMATION:

Wuhan Kingdrilling Diamond CO., LTD, located in Wuhan East Lake High-tech Development Zone, is one of the most professional private enterprise specialized in researching and producing ODEX casing drilling system, symmetric casing drilling system, DTH hammer, DTH drill bits, Thread bits, Shank adapter, Drilling rods, Coal mining tools, Coupling sleeve, Anchoring and so on.

Relying on the university resources and talent advantages in Optical Valley region, combining with multiple laboratories in universities, we focused on developing the newest products system.

We produce DTH drilling tools with advanced technology from Britain, a completed manufacturing system has been formed in plant. The company is equipped with advanced production facilities including electron-hydraulic forging hammer, multipurpose furnace heat treatment production line, high performance CNC machines, all processes from raw materials prepared, forging, heat treatment, metal processing are completed in the factory. Strict quality control standards make sure stable quality.

Whatever in construction, engineering, piling, waterwell drilling, tunnelling, mining, quarrying or horizontal drilling industry. KINGDRILLING will always do the best to meet your demands. "Kingdrilling, Keep On Striving",  we’ll always be in this line to serve our customers the most reliable products and the best support.
