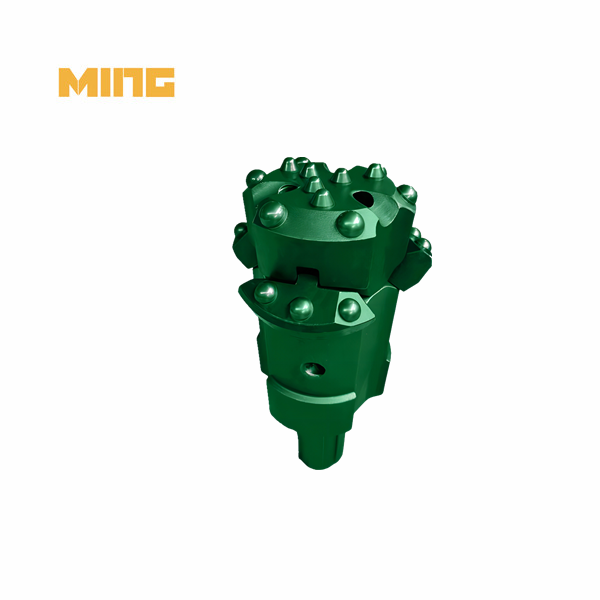

Product Name: MNS Five-Piece Concentric Overburden Casing Drilling System for CIR110 Hammer & 114mm Pipe

Product category: Overburden eccentric casing bit

Matched hammer: Hammer CIR110

Matched casing pipe OD: 114mm

MNS Sliding five-piece concentric overburden casing drilling system feature:

When the guide bit reaches to the rock stratum, the stabilizer rod and guide bit begin to fold, the reamer bits expand along the sliding chute and start to drill; when finished, the stabilizer rod is lifted, the guide bit is automatically separated by gravity and the reamer bits are automatically gathered, thus lifted from the bottom of the hole. This drilling system is mainly applied for 108-323mm.

MNS Sliding five-piece concentric overburden casing drilling system technical data:

Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

MNS Overburden casing drilling system advantages:

1. Stable and reliable working performance

2. Full face head design for faster penetration and straighter hole

3. Less torque is required than eccentric drilling

4. Can drill in vertical, horizontal or any direction

5. Minimize disruption to the drilled hole

6. Effective cuttings removal

FAQ:

1. How to order the products?

Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

2. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4.How deep can a water well be drilled?

Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.
